    超微 SYS-822GS-NB3RT-B300 AI 服务器：为大模型训练而生的算力巅峰。超微 SYS-822GS-NB3RT-B300 8U 机架式 AI 服务器，以极致的硬件配置、澎湃的算力输出与稳定的工业级设计，成为部署 OpenClaw 等 AI 大模型的首选方案。它搭载 NVIDIA Blackwell 架构 HGX B300 GPU，搭配旗舰级 Intel Xeon 处理器，为 AI 训练、推理、高性能计算等场景提供强劲算力、极速响应与 7×24 小时稳定支撑，重新定义企业级 AI 基础设施的性能标杆。

    • 0.00
      0.00
商品描述

超微 SYS-822GS-NB3RT-B300 AI 服务器：为大模型训练而生的算力巅峰。超微 SYS-822GS-NB3RT-B300 8U 机架式 AI 服务器，以极致的硬件配置、澎湃的算力输出与稳定的工业级设计，成为部署 OpenClaw 等 AI 大模型的首选方案。它搭载 NVIDIA Blackwell 架构 HGX B300 GPU，搭配旗舰级 Intel Xeon 处理器，为 AI 训练、推理、高性能计算等场景提供强劲算力、极速响应与 7×24 小时稳定支撑，重新定义企业级 AI 基础设施的性能标杆。

Chassis

Form Factor

· 8U Rackmount

Model

· CSE-GP807TS-R000NP



Dimensions and Weight

Height

· 13.8" (356 mm)

Width

· 17.6" (449 mm)

Depth

· 37.4" (950 mm)

Package

· 26.38" (H) x 28.74" (W) x 50.39" (D)

Weight

· Gross Weight: 302 lbs (137 kg)

· Net Weight: 263 lbs (119 kg)

Available Color

· Silver



Front Panel

Buttons

· Power On/Off

· UID

LED

· HDD activity

· LAN1 activity

· LAN2 activity

· Power Fail

· Power status

· System information (overheat/UID)



Expansion Slots

PCI-Express (PCIe) Configuration

· Default

· 2 PCIe 5.0 x16 FHHL slots

· 查看 AOC 选项

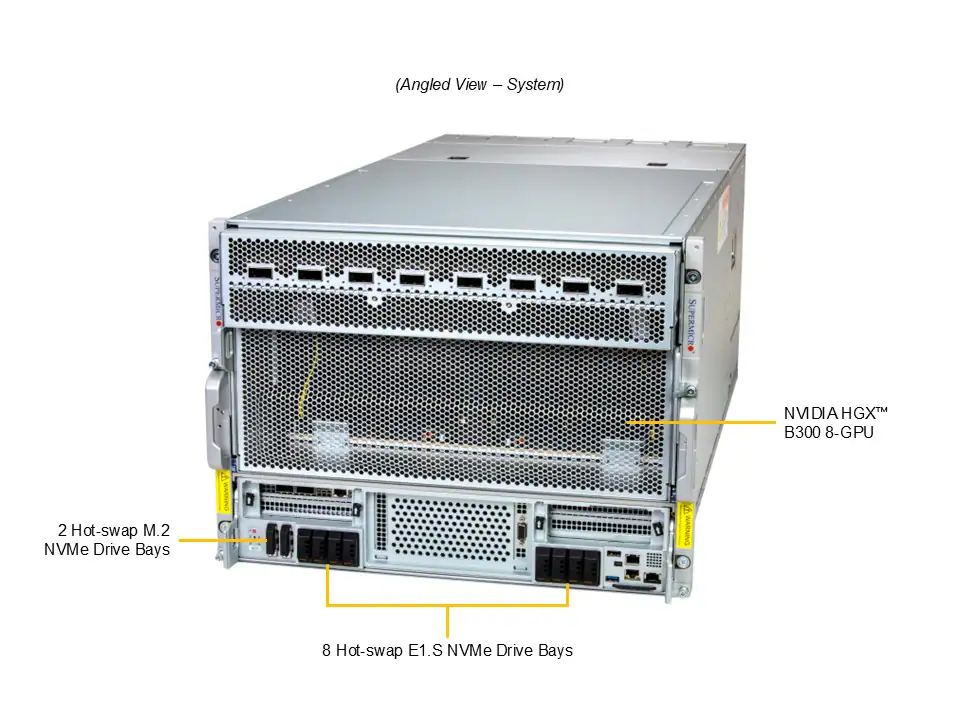

Drive Bays / Storage

Drive Bays Configuration

· Default: Total 8 bays

· 8 front hot-swap E1.S NVMe drive bays

· 查看 NVMe 选项

M.2

· 2 M.2 NVMe slots (M-key; RAID support via S3808N controller)

· 查看 M.2 选项

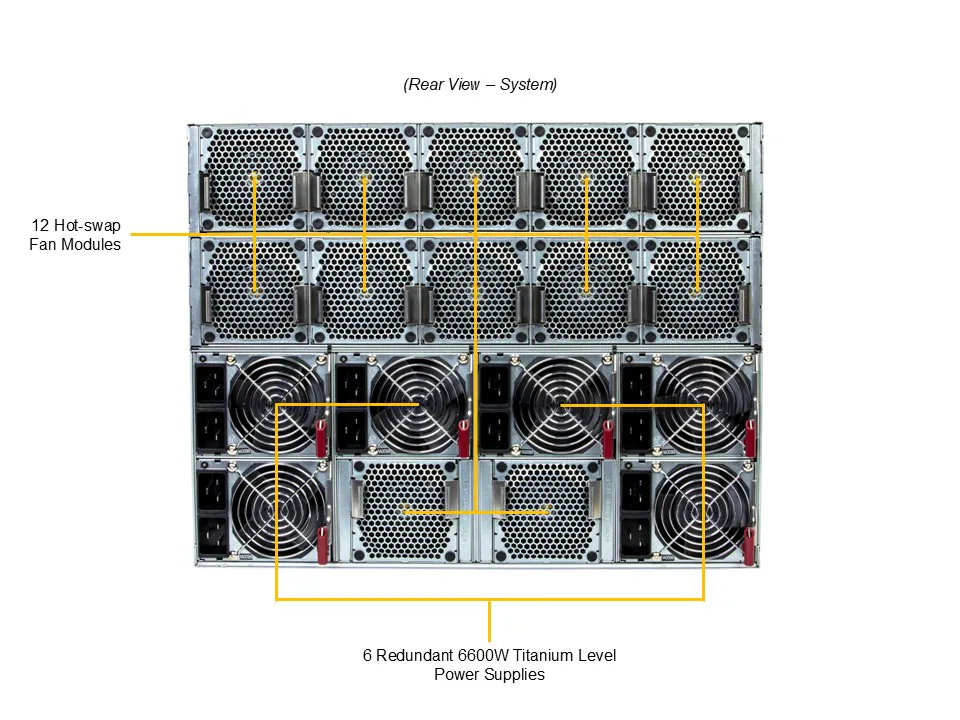

System Cooling

Fans

· Up to 12 heavy duty fans with optimal fan speed control



Power Supply

6x 6600W Redundant (3 + 3) Titanium Level (96%) power supplies

Dimension (WxHxL)

106.5 x 82.1 x 245.3 mm

Input

5900W: 200-207.9Vac / 50-60Hz
6000W: 208-219.9Vac / 50-60Hz
6300W: 220-229.9Vac / 50-60Hz
6500W: 230-238.9Vac / 50-60Hz
6600W: 239-240Vac / 50-60Hz

+12V

Max: 130A / Min: 0A (200Vac-207.9Vac)
Max: 130A / Min: 0A (208Vac-219.9Vac)
Max: 130A / Min: 0A (220Vac-229.9Vac)
Max: 130A / Min: 0A (230Vac-238.9Vac)
Max: 130A / Min: 0A (239Vac-240Vac)

12V SB

Max: 4A / Min: 0A

Output Type

Backplanes (gold finger)

Certification

 Titanium Level

[ 测试报告 ]









Operating Environment

Environmental Spec.

· Operating Temperature: 10°C to 35°C (50°F to 95°F)

· Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

· Operating Relative Humidity: 8% to 90% (non-condensing)

· Non-operating Relative Humidity: 5% to 95% (non-condensing)



Product SKUs

SuperServer SYS-822GS-NB3RT

SuperServer SYS-822GS-NB3RT-01-G2 Gold Series version with pre-configured components

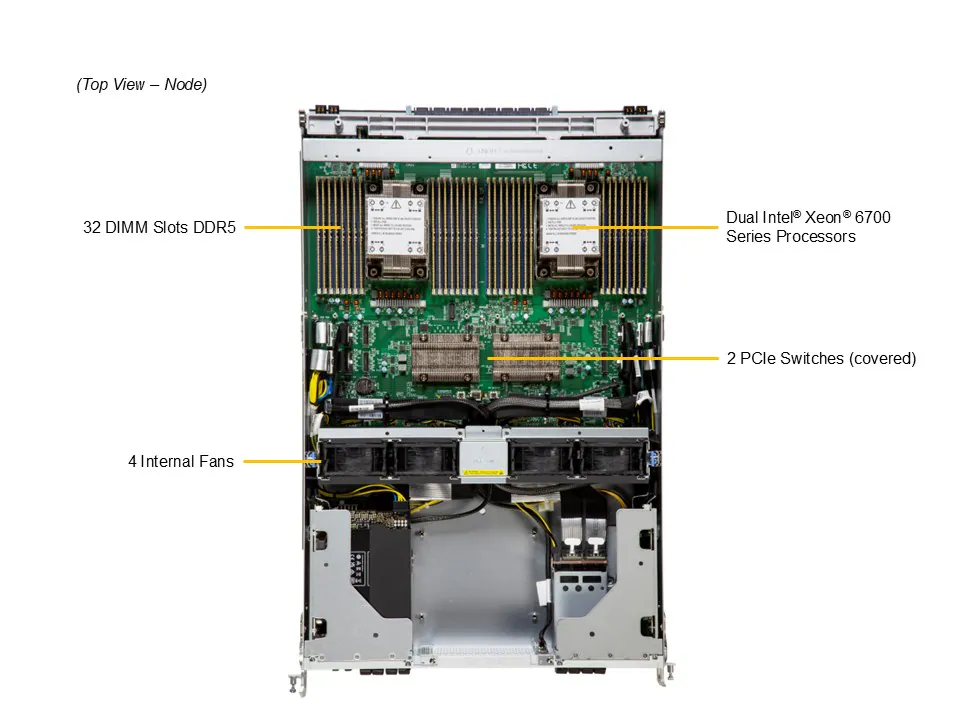

Motherboard

超级X14DBG-LC



Processor

CPU

· Dual Socket E2 (LGA-4710)

· 英特尔® 至强® 6700 系列处理器（含 P 核）

Core Count

· Up to 86C/172T; Up to 336MB Cache per CPU

Note

· Supports up to 350W TDP CPUs (Air Cooled)



GPU

Max GPU Count

· 8 onboard GPUs

Supported GPU

· NVIDIA SXM: HGX B300 8-GPU (288GB)

· 查看 GPU 选项

GPU-GPU Interconnect

· NVIDIA® NVLink™ with NVSwitch™



System Memory

Memory

· Slot Count: 32 DIMM slots

· Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM

· Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM

· 查看内存选项

Memory Voltage

· 1.1V



On-Board Devices

Chipset

· System on Chip

Network Connectivity

· 查看 AOC 选项

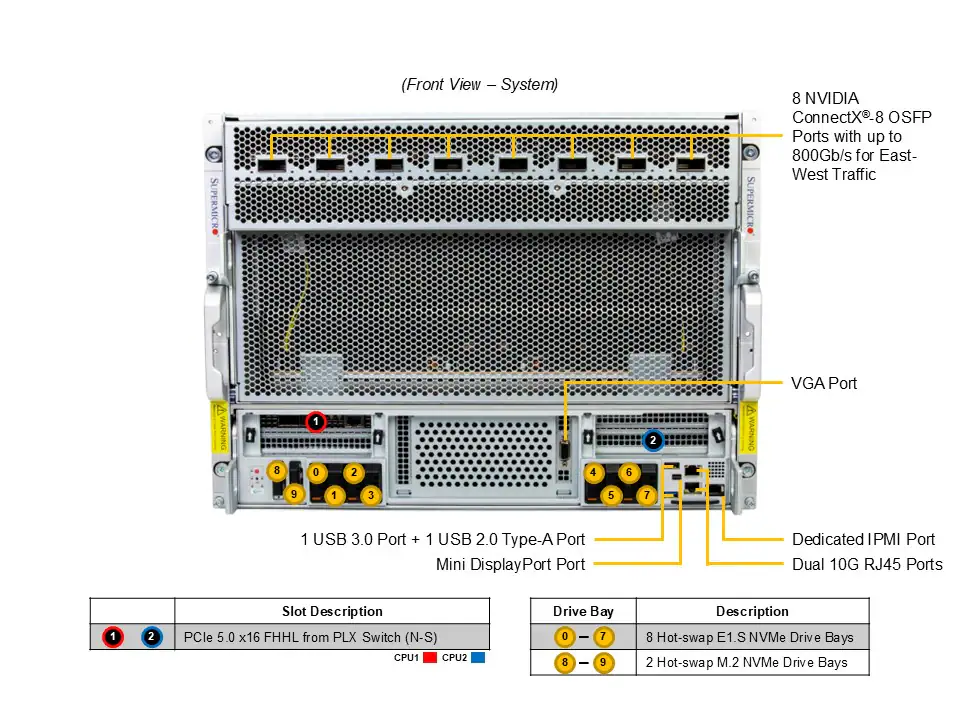

Input / Output

LAN

· 8 OSFP 800 GbE LAN ports (NVIDIA ConnectX®-8 SuperNIC)

· 2 RJ45 10 GbE LAN ports (Intel® X710)

USB

· 1 USB 3.0 Type-A port(Front)

· 1 USB 2.0 Type-A port(Front)

Video

· 1 VGA port

· 1 mini-DP port



System BIOS

BIOS Type

· AMI 64MB UEFI



Management

Software

· 超级云计算作曲家

· Supermicro Server Manager (SSM)

· 超级诊断脱机 (SDO)

· Supermicro Thin-Agent Service (TAS)

· SuperServer 自动化助理 (SAA) 新功能！

Power configurations

· Power-on mode for AC power recovery

· ACPI Power Management



Security

Hardware

· Trusted Platform Module (TPM) 2.0

· Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

· Cryptographically Signed Firmware

· Secure Boot

· Secure Firmware Updates

· Automatic Firmware Recovery

· Supply Chain Security: Remote Attestation

· Runtime BMC Protections

· System Lockdown



PC Health Monitoring

CPU

· 8+4 Phase-switching voltage regulator

· Monitors for CPU Cores, Chipset Voltages, Memory

FAN

· Fans with tachometer monitoring

· Pulse Width Modulated (PWM) fan connectors

· Status monitor for speed control

Temperature

· Monitoring for CPU and chassis environment

· Thermal Control for fan connectors
